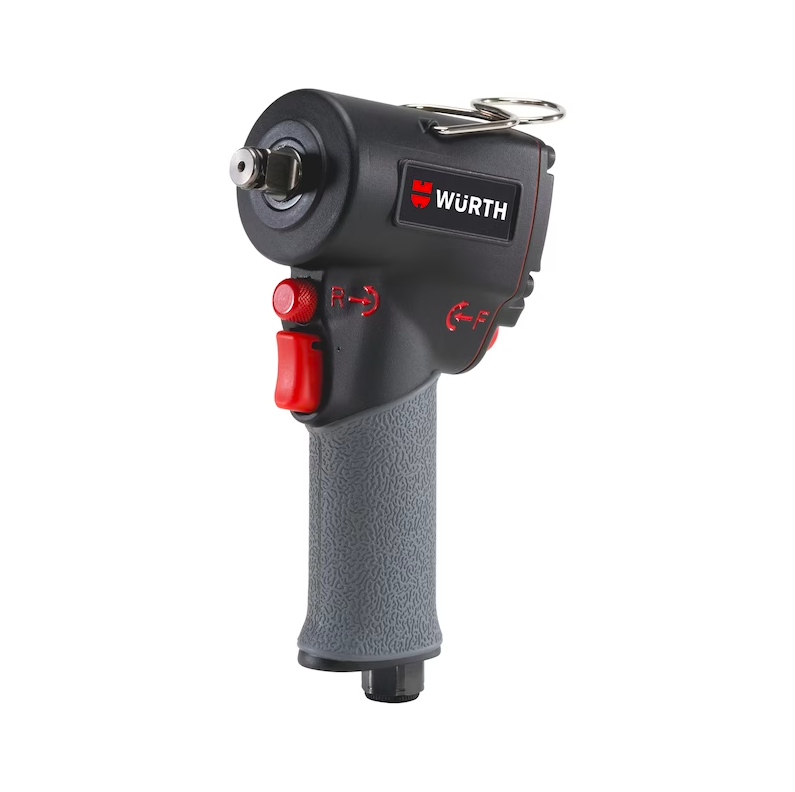

Wurth Pneumatic Impact Screwdriver Compact Gun type Power Tool

Wurth Pneumatic Impact Screwdriver Compact Gun type Power Tool

The Retail Store

Regular price $602.00
Regular price $620.00 Sale price $602.00
On Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left

Very powerful yet compact pneumatic impact screwdriver with outstanding power-to-weight ratio. Maximum recommended screw size: M16.

Long service life and optimal balance distribution
-Rugged, well-balanced unit in aluminium housing.


Very handy and user-friendly

  • Rubberised handle prevents unpleasant cooling

  • User-friendly clockwise/anti-clockwise changeover and adjustable button


Compact and extremely powerful jumbo hammer mechanism

- High power development with small size and low weight, up to 1,100 Nm breakaway torque.



Optimum and user-friendly adjustment to any application, at any time

-Three-stage power setting for clockwise rotation, with sensitive trigger


Notice

  • Impact screwdrivers are not torque screwdrivers. Connections requiring a specific torque must be checked by means of a torque measuring device after tightening with the impact screwdriver.

  • When the impact screwdriver is used regularly, a little oil should be added daily through the compressed air supply.

  • Plug-in nipple not included in the scope of delivery



Application area

Ideal where space is limited, e.g. gearbox, engine compartment, brakes



V563-57143020

Type description

DSS 1/2 inch Compact

Tool holding device

1/2-inch external square

Max. working torque

678 Nm

Max. releasing torque

1100 Nm

Sound-pressure level

102 dB

Vibration

7.5 m/s²

Operating pressure

6.3 bar

Weight of machine

1.34 kg

Min. hose inner diameter

9 mm

Air consumption

122 l/min

Connection thread

1/4 inch

Length x width x height

109 x 57 x 188 mm

SKU:V563-57143020
